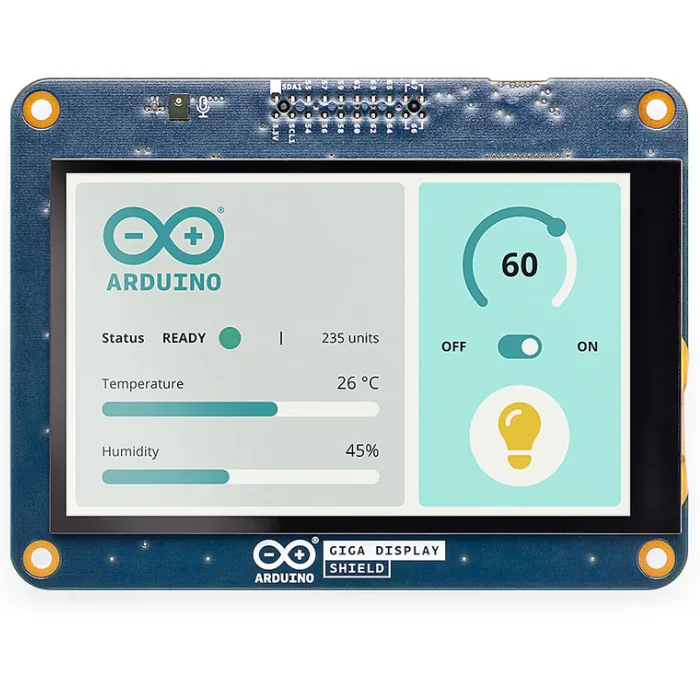

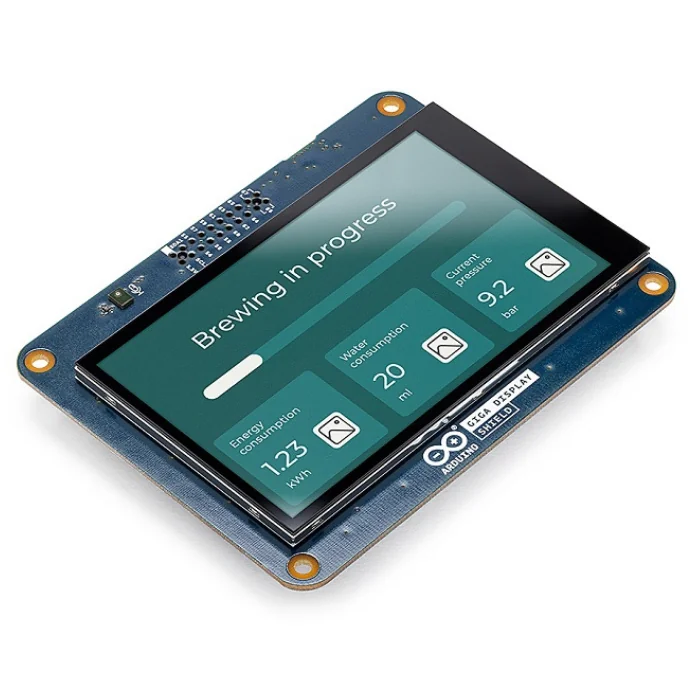

Official 3.97-inch Arduino GIGA Touchscreen Display Shield 480×800
The Official Arduino GIGA Display Shield is designed to seamlessly add a touchscreen display with orientation detection to your Arduino GIGA R1 WiFi board.
This Arduino display shield enables easy integration of an external touch display and provides several useful peripherals, making it an ideal solution for developing Human-Machine Interface (HMI) systems. With the included gyroscope, it offers automatic orientation detection, allowing visual elements to adjust accordingly.
This feature is particularly beneficial for rapid prototyping in interaction design, enabling you to explore new ways of communicating with technology, such as through social robots that react to sound.
Additionally, the built-in microphone enables voice assistant capabilities, paired with the powerful edge computing of the GIGA R1 WiFi for voice automation and visual feedback.
Features:

Display: 3.97-inch KD040WVFID026-01-C025A TFT display

Resolution: 480×800 pixels

Color Depth: 16.7 million colors for vibrant display

Pixel Size: 0.108 mm for crisp and clear visuals

Touch Sensor: Capacitive touch with 5-point multi-touch and gesture support

Backlight: Edge LED backlight for enhanced visibility

IMU (Inertial Measurement Unit): 16-bit BMI270 6-axis IMU for precise motion sensing

Accelerometer: 3-axis with selectable range (2g/4g/8g/16g) for motion detection

Gyroscope: 3-axis with adjustable range (125dps/250dps/500dps/1000dps/2000dps) for accurate orientation

RGB LED: SMLP34RGB2W3 RGB LED for customizable lighting effects

Acoustic Overload Point (AOP): 122.5 dB SPL for clear audio performance

Signal-to-Noise Ratio: 64 dB for high-quality audio output

Sensitivity: 26 dBFS with 3 dB sensitivity for improved detection

Display Driver: IS31FL3197-QFLS2-TR driver with integrated charge pump for optimal performance

Connector: GIGA Connector for secure board attachment

Camera Connector: 2.54 mm camera connector for easy camera integration
