Description

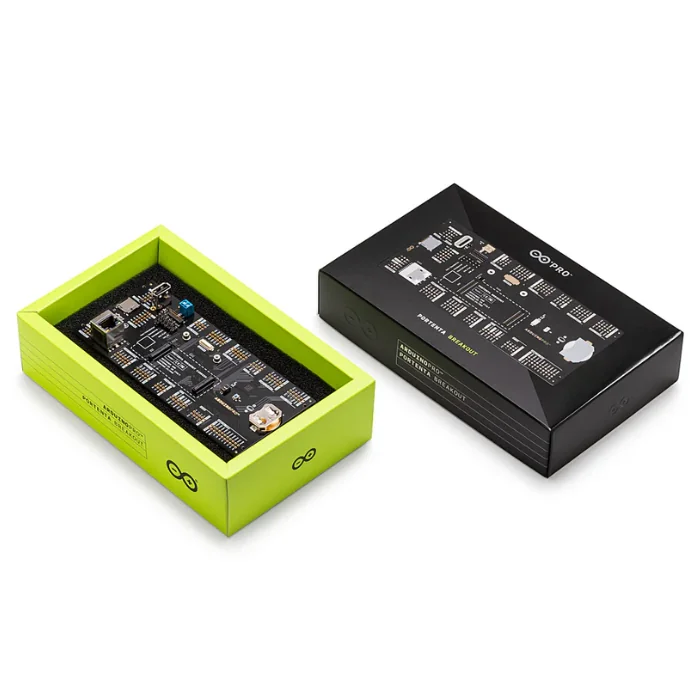

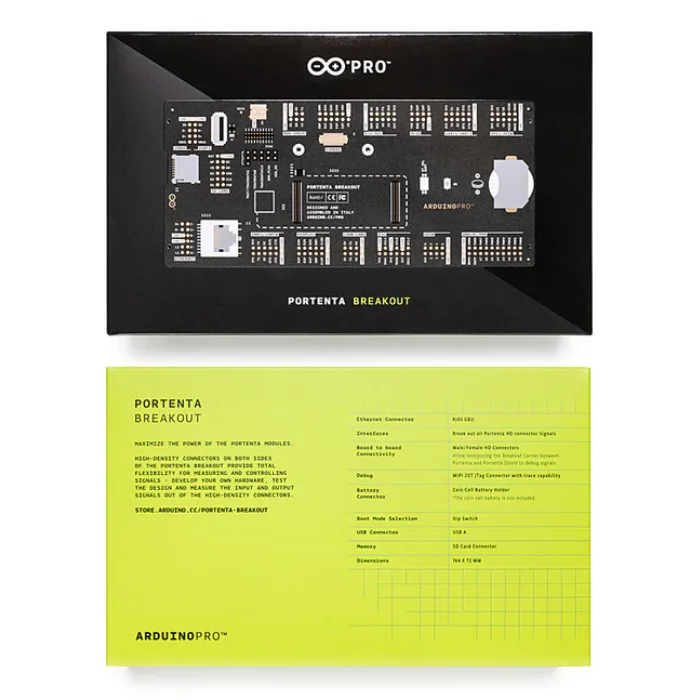

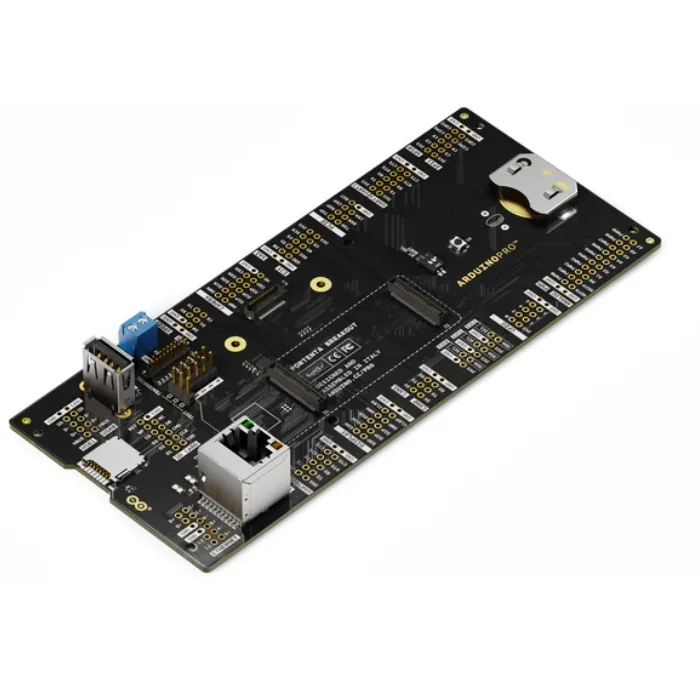

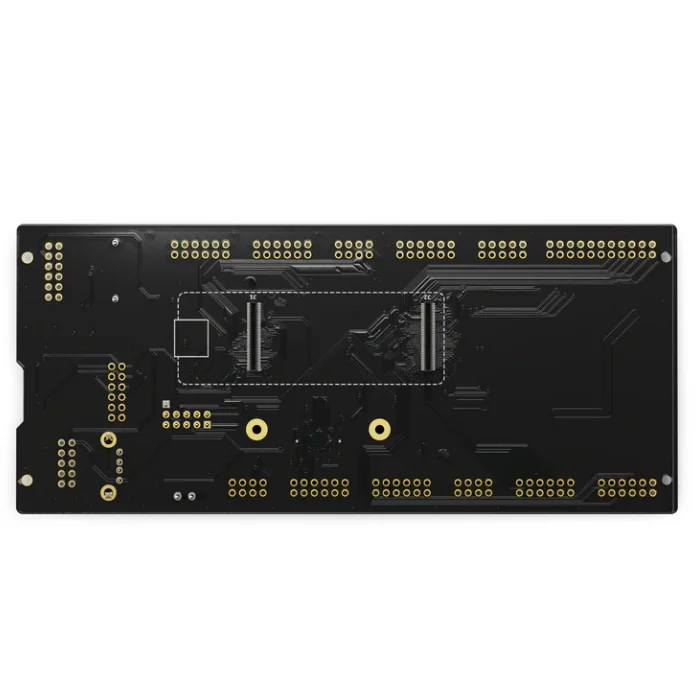

Official Arduino Portenta Breakout board
The Arduino Portenta Breakout board is a crucial tool designed to simplify and accelerate prototyping and testing phases when working with Arduino Portenta board connections.
It makes all signals from the Portenta’s high-density connectors individually accessible, enabling quick and straightforward connection to, and testing of, external hardware components and devices as typically required during lab-based development.
This significantly reduces development time for industrial-grade solutions and serves as an excellent aid for technical education in embedded systems.
The board features convenient elements like a power ON button, a boot mode DIP switch, and an RTC battery backup. Its design uniquely allows it to be interposed between a Portenta board and a shield, facilitating direct signal debugging and analysis.
Features:

Power ON button for convenient control.

Boot mode DIP switch for configuration.

USB, RJ45 (up to 1Gb/s), and Micro SD card connectors onboard.

CR2032 RTC Lithium Battery backup for timekeeping.

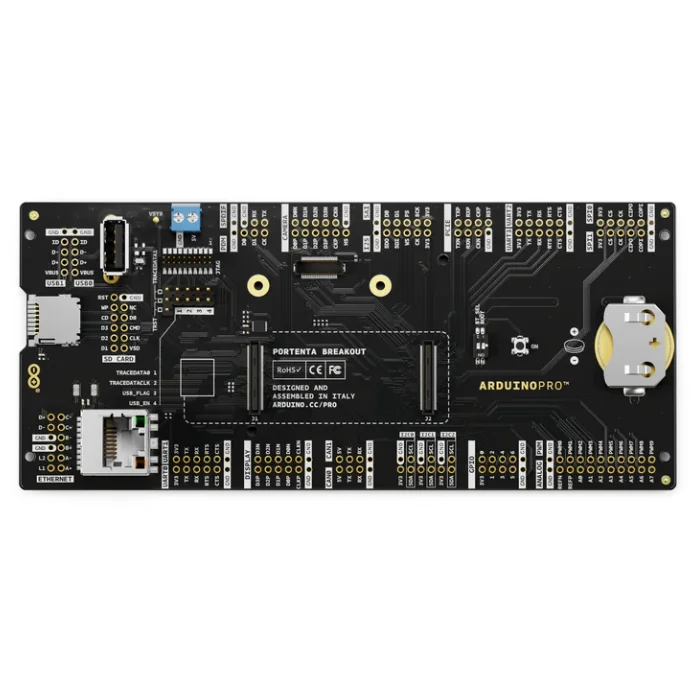

All Portenta high-density connector signals are broken out for easy access.

Arduino Portenta Breakout Pinout Diagram:
